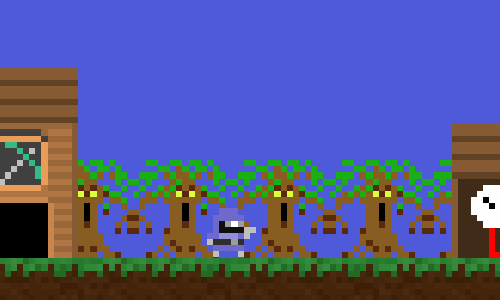

The ability to fade the scene to black can be a very useful effect in a game. It makes a great transition between scenes.

In Space Miner the screen fades to black after the player dies before the Game Over UI appears.

If you look around you can find several ways to achieve this effect. The easiest approach is to put a texture in front of the screen, and then fading it to black.

You can see it in the following code snippet. Note that it uses a GUITexture so it doesn’t need to interact with the current camera.

using System.Collections;
using UnityEngine;

[RequireComponent(typeof(GUITexture))]
public class FadeToBlackService : MonoBehavior {

    /// <summary>
    /// Time, in seconds, to complete the fade.
    /// </summary>
    public float fadeSpeed = 3.0f;

    // Should the screen fade to black or clear?
    private bool fadingToBlack = false;

    // Handle to the GUITexture rendered in front of the screen.
    private GUITexture theGuiTexture = null;

    // Time the fade started.
    private float fadeStartTime;

    void Start() {
        theGuiTexture = GetComponent<GUITexture>();
        if (theGuiTexture == null) {
            throw new UnityException("GUITexture must be attached.");
        }
        if (theGuiTexture.texture == null) {
            throw new UnityException("A texture must be set.)");
        }

        // Set the texture so that it covers the screen.
        theGuiTexture.pixelInset = new Rect(
            0.0f, 0.0f, Screen.width, Screen.height);
        theGuiTexture.color = Color.clear;

        // Start with the fade complete.
        fadeStartTime = -fadeSpeed;
    }

    void Update() {
        float t = (Time.time - fadeStartTime) / fadeSpeed;
        t = Mathf.Clamp01(t);

        Color startColor = fadingToBlack ? Color.clear : Color.black;
        Color finishColor = fadingToBlack ? Color.black : Color.clear;
        theGuiTexture.color = Color.Lerp(startColor, finishColor, t);
    }

    public void FadeToBlack() {
        fadeStartTime = Time.time;
        fadingToBlack = true;
    }

    public void FadeToClear() {
        fadeStartTime = Time.time;
        fadingToBlack = false;
    }
}

To start the effect, simply call FadeToBlack.
